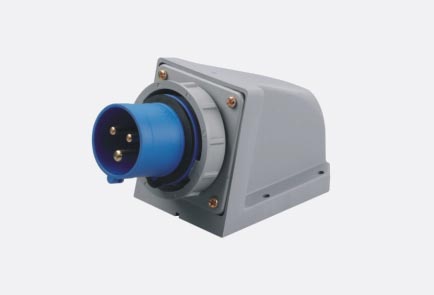

lP67 Industrial Reverse Plug are widely used in industrial scenarios that require frequent movement or reconfiguration. It is efficient, safe, easy to operate, and improves production efficiency. It has good sealing performance and is suitable for various harsh working environments.

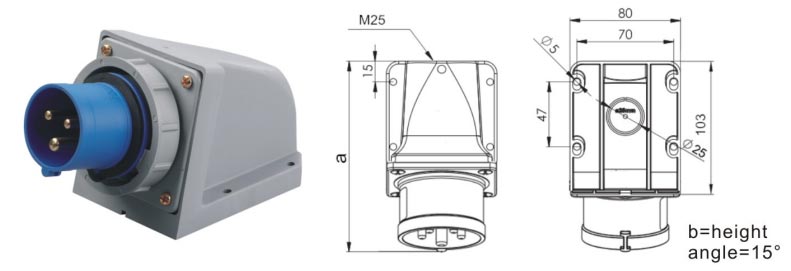

| Model | 16 | 3 | TH-6132 | |
| 4 | TH-6142 | |||
| 5 | TH-6152 | |||
| 32 | 3 | TH-6232 | ||
| 4 | TH6242 | |||
| 5 | TH6252 |
| size(mm) | Amp | 16 | Amp | 16 | Amp | 32 | Amp | 32 | ||||||||
| Poles | 3 | 4 | 5 | Poles | 3 | 4 | 5 | Poles | 3 | 4 | 5 | Poles | 3 | 4 | 5 | |
| Amp | 139 | 139 | 139 | Conductor crosssectional area(mm²)Min to Max | a | 148.5 | 148.5 | 148.5 | Conductor crosssectional area (mm²) Min to Max | |||||||
| b | 80 | 80 | 80 | b | 88 | 88 | 88 | |||||||||
| c | 71 | 71 | 71 | c | 71 | 71 | 71 | |||||||||
| d | 50 | 50 | 50 | 1-2.5 | d | 57 | 57 | 57 | 2.5-6 | |||||||
| e | 57 | 57 | 57 | e | 57 | 57 | 57 | |||||||||
| f | 20 | 20 | 20 | f | 20 | 20 | 20 | |||||||||
| g | 32.5 | 32.5 | 32.5 | g | 32.5 | 32.5 | 32.5 | |||||||||
| h | 6.5 | 6.5 | 6.5 | h | 6.5 | 6.5 | 6.5 | |||||||||

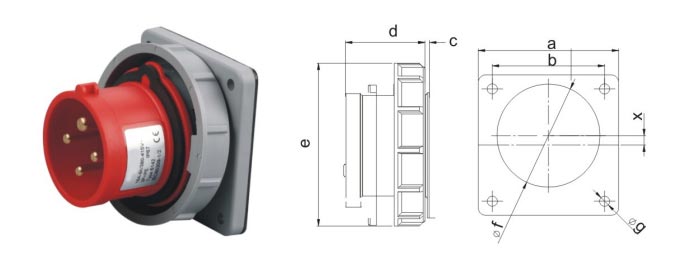

| Model | 16 | 3 | TH-5132 | |
| 4 | TH-5142 | |||
| 5 | TH-5152 | |||
| 32 | 3 | TH-5232 | ||
| 4 | TH5242 | |||
| 5 | TH5252 |
| size(mm) | Amp | 16 | Amp | 16 | Amp | 32 | Amp | 32 | ||||||||
| Poles | 3 | 4 | 5 | Poles | 3 | 4 | 5 | Poles | 3 | 4 | 5 | Poles | 3 | 4 | 5 | |
| Amp | 134 | 139 | 139 | Conductor crosssectional area(mm²)Min to Max | a | 134 | 148.5 | 148.5 | Conductor crosssectional area (mm²) Min to Max | |||||||
| b | 80 | 80 | 80 | b | 80 | 88 | 88 | |||||||||
| c | 71 | 71 | 71 | c | 71 | 71 | 71 | |||||||||
| d | 43.5 | 50 | 50 | 1-2.5 | d | 43.5 | 57 | 57 | 2.5-6 | |||||||
| e | 57 | 57 | 57 | e | 57 | 57 | 57 | |||||||||
| f | 20 | 20 | 20 | f | 20 | 20 | 20 | |||||||||
| g | 32.5 | 32.5 | 32.5 | g | 32.5 | 32.5 | 32.5 | |||||||||
| h | 6.5 | 6.5 | 6.5 | h | 6.5 | 6.5 | 6.5 | |||||||||
