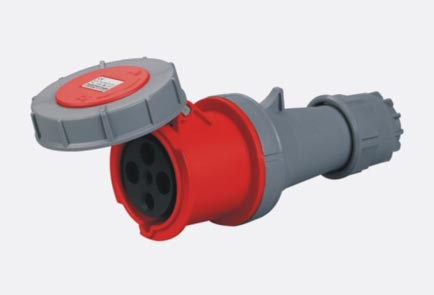

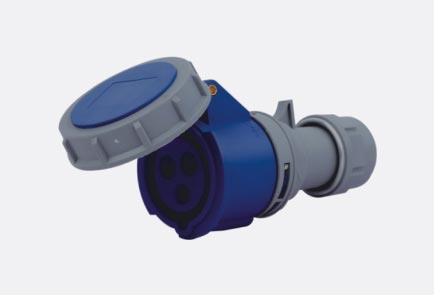

IP67 Industrial Socket is designed for industrial environments and can withstand high currents and frequent plugging and unplugging. Its four-pin design ensures stable power transmission and is suitable for various industrial equipment such as machine tools and production lines. The housing is made of high-strength material with good impact and corrosion resistance.

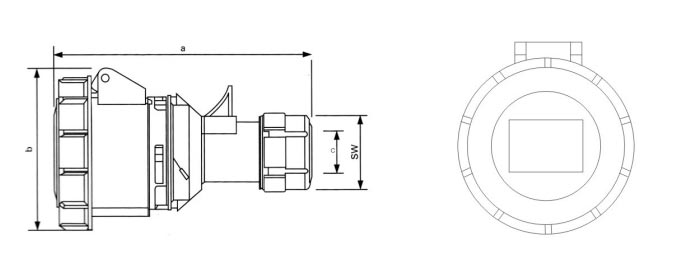

| size(mm) | Amp | 16 | Amp | 16 | Amp | 32 | Amp | 32 | ||||||||
| Poles | 3 | 4 | 5 | Poles | 3 | 4 | 5 | Poles | 3 | 4 | 5 | Poles | 3 | 4 | 5 | |
| a | 133 | 139 | 145 | Conductor crosssectional area (mm²) Min to Max | a | 162 | 162 | 168 | Conductor crosssectional area (mm²) Min to Max | |||||||
| b | 78 | 84 | 92 | b | 96 | 96 | 96 | |||||||||
| c | 6-15 | 6-15 | 8-16 | 1-2.5 | SW | 10-20 | 10-20 | 10-20 | 2.5-6 | |||||||
| SW | 38 | 38 | 42 | 50 | 50 | 50 | ||||||||||
| size(mm) | Amp | 63 | Amp | 125 | Amp | 125 | Amp | 125 | ||||||||
| Poles | 3 | 4 | 5 | Poles | 3 | 4 | 5 | Poles | 3 | 4 | 5 | Poles | 3 | 4 | 5 | |
| a | 261 | 261 | 261 | Conductor crosssectional area (mm²) Min to Max | a | 305 | 305 | 305 | Conductor crosssectional area (mm²) Min to Max | |||||||
| b | 114 | 114 | 114 | b | 115 | 115 | 115 | |||||||||
| c | 30 | 30 | 30 | 6-16 | c | 44.5 | 44.5 | 44.5 | 16-50 | |||||||
| d | 112 | 112 | 112 | d | 130 | 130 | 130 | |||||||||
| 16A | 32A | 63A | 125A | |
| 3P110V | TH-2132-4 | TH-2232-4 | ||
| 3P220V | TH-2132 | TH-2232 | TH-2332 | TH-2432 |
| 4P380V | TH-2142 | TH-2242 | TH-2342 | TH-2442 |
| 5P415V | TH-2152 | TH-2252 | TH-2352 | TH-2452 |
